Sliding Glass Door Sizes: Standard Dimensions and How Much Space a 4-Panel Door Needs
Table of Contents
A 4 panel sliding glass door is one of the most impressive upgrades you can make to a modern home. It brings in abundant natural light, expands views, and creates a seamless connection between indoor living spaces and outdoor areas. But before you commit to installing one, it’s important to understand how much space you actually need.
This guide explains the real spatial requirements for 4 panel sliding patio doors, the structural considerations behind large openings, and the key design decisions that will help you choose the right configuration.
Whether you are renovating your living room, designing a new build, or exploring high-end fenestration options, the following sections will help you confidently plan for a 4 panel sliding glass patio door in your home.
Standard Sliding Glass Door Sizes
A standard sliding glass door is 80 inches (6 ft 8 in) tall and 60, 72 or 96 inches (5, 6 or 8 feet) wide. Wider openings use 3-panel and 4-panel doors, which typically run from 9 to 16 feet wide.
Door type | Common widths | Common heights | Typical use |
|---|---|---|---|
2-panel (OX / XO) | 60 in (5 ft), 72 in (6 ft), 96 in (8 ft) | 80 in, 82 in, 96 in | Bedrooms, kitchens, smaller patios |
3-panel (OXO / OXX) | 108 in (9 ft), 144 in (12 ft) | 80 in, 96 in | Wider patios, center-opening doors |
4-panel (OXXO) | 120 in (10 ft), 144 in (12 ft), 180 in (15 ft), 192 in (16 ft) | 80 in, 96 in, 108 in+ | Living rooms, large openings to a deck or garden |
Custom, up to 30 ft+ | Custom | Full wall openings in luxury homes and hospitality |
In the codes above, “O” is a fixed panel and “X” is a sliding panel, viewed from outside. Standard sizes matter most when you replace an existing door. For new builds and renovations, Simpas makes every sliding door to order, so it can be sized to your exact opening.

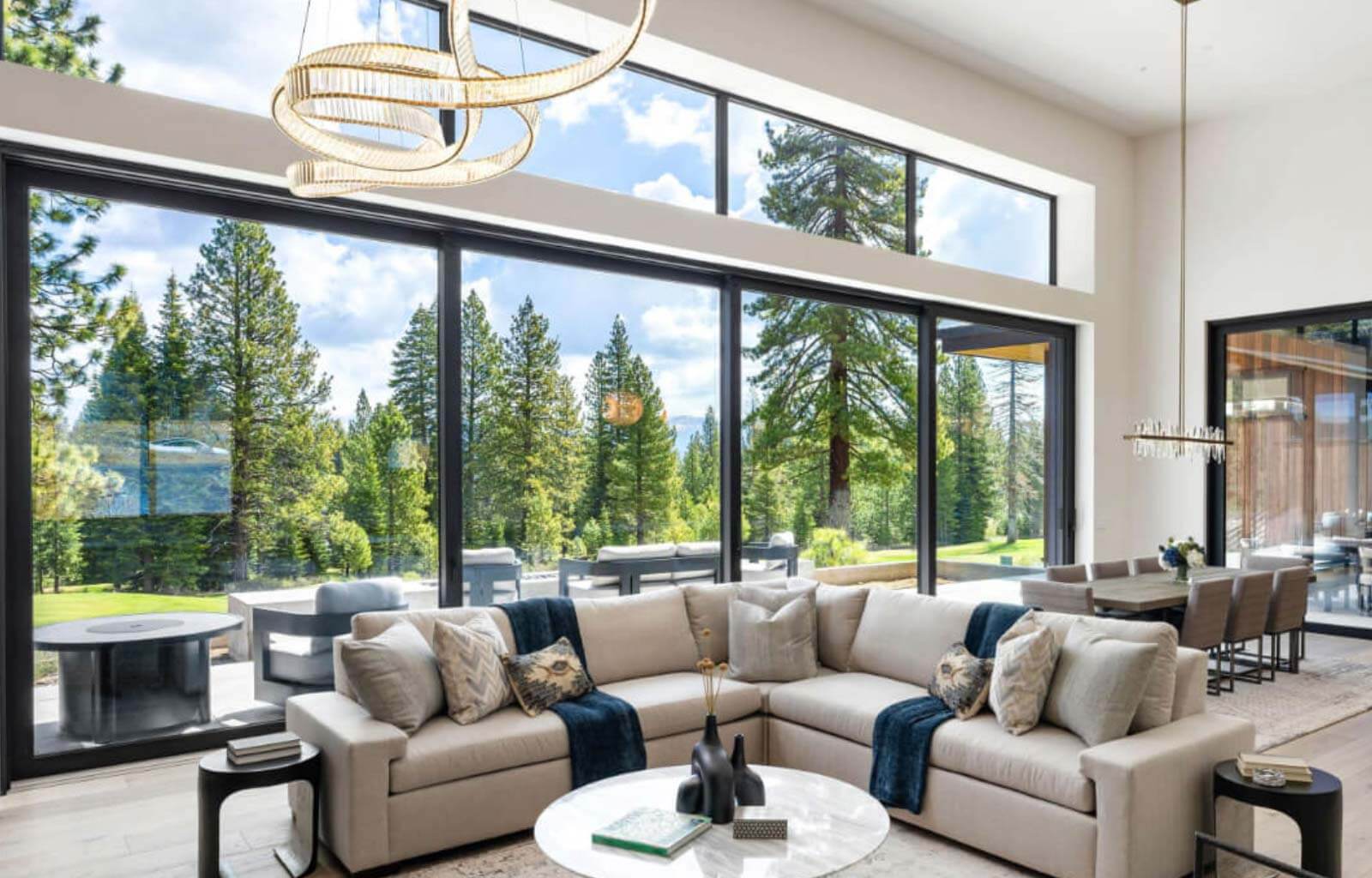

Understanding the Scale of a 4 Panel Sliding Glass Door
A 4 panel patio door is not just a larger version of a two-panel system. It is an architectural feature that dramatically alters the spatial dynamics of a room. Instead of having one operable panel and one fixed, you now have four large glass surfaces, typically with two moving panels meeting in the center or sliding toward the sides.
The scale of these doors is what gives them their luxurious feel, but it also means the surrounding space must be carefully planned. The width alone can range from 10 to 16 feet, and the height is often eight feet or more. Because of this, a four-panel system influences everything from wall structure and light distribution to furniture placement and exterior circulation.
Explore the Complete Sliding Door Guide
Want a deeper comparison between 2-panel and 4-panel systems? Read our comprehensive guide on modern sliding patio doors and discover which configuration fits your home best.
4-Panel Sliding Glass Door Sizes
To determine how much space you need, you must start with standard dimensions. While custom sizes are available, most homeowners choose from a few common formats.
Standard Widths for 4 Panel Sliding Glass Doors
Most 4 panel sliding glass doors come in:
- 10 feet (120 inches)
- 12 feet (144 inches)
- 15 feet (180 inches)
- 16 feet (192 inches)
Larger custom configurations can stretch even further—especially in aluminum or steel systems—but these sizes cover 90% of residential installations.
Standard Heights
Popular height options include:
- 80 inches (standard door height)
- 96 inches (8 ft ceilings)
- 108 inches or more for high-end architectural designs
Each additional foot of height increases the weight significantly, which is why tall doors often use lift-and-slide hardware.
Rough Opening Requirements for 4 Panels Sliding Glass Patio Doors
A 4 panel sliding glass door requires a rough opening that is larger than the finished door size. This extra space allows installers to level the frame, add insulation, compensate for structural movement, and apply interior and exterior finishes.
For example, a standard 12-foot-wide door (144 inches) generally needs a rough opening of about 146 to 148 inches. Similarly, a 10-foot system will need around 122 to 124 inches. This margin varies slightly between manufacturers, but the principle remains the same: the larger the door, the more important these extra inches become.
The opening must also be perfectly level. Even a slight misalignment can affect the gliding performance of a four-panel system, especially a 4 panel multi slide patio door, which may include multiple tracks and heavier panels.
If you’re unsure how to calculate the exact rough opening, your contractor or architect can evaluate the surrounding structure and determine the correct measurements.
Wall Structure and Load-Bearing Considerations
One of the most common misconceptions about installing a 4 panel patio door is that you simply “cut a hole in the wall” and fit the doors. In reality, walls often carry significant structural loads, and removing a large section requires professional reinforcement.
A wide opening for a four-panel system may require:
- A new engineered header or beam (steel, LVL, or glulam).
- Redistribution of load to other structural elements.
- Temporary supports during installation.
- Additional framing for taller or heavier doors.
Homes with older construction or masonry walls typically require more invasive preparation, whereas newer framed homes may adapt more easily. This is one reason professional installation is strongly recommended for these larger door systems.
If your home cannot structurally support a 12- to 16-foot opening, a smaller two-panel system might be more suitable. The differences between these two options are detailed in our main pillar article, which covers configurations like OXXO sliding systems and their structural needs.
Interior Floor Space Requirements Around 4-Panel Sliding Doors
While one advantage of sliding doors is that they require no swing area, a large door is still a major design element. Giving it adequate interior breathing room enhances functionality and aesthetics.
Ideally, you should allow at least three feet of free space in front of the door to ensure comfortable movement, natural traffic flow, and unobstructed sliding. Narrower clearances can make the room feel cramped, especially if the door spans 12–16 feet.
The placement of furniture matters as well. Large sofas placed directly in front of the door can diminish its visual impact, block daylight, and restrict movement. A four-panel glass system functions best when the adjacent interior zone feels open and airy.
In many modern homes, 4-panel systems act as focal points. Designing the room around them—rather than fitting them into an already crowded layout—enhances both the aesthetic and the daily usability of the space.

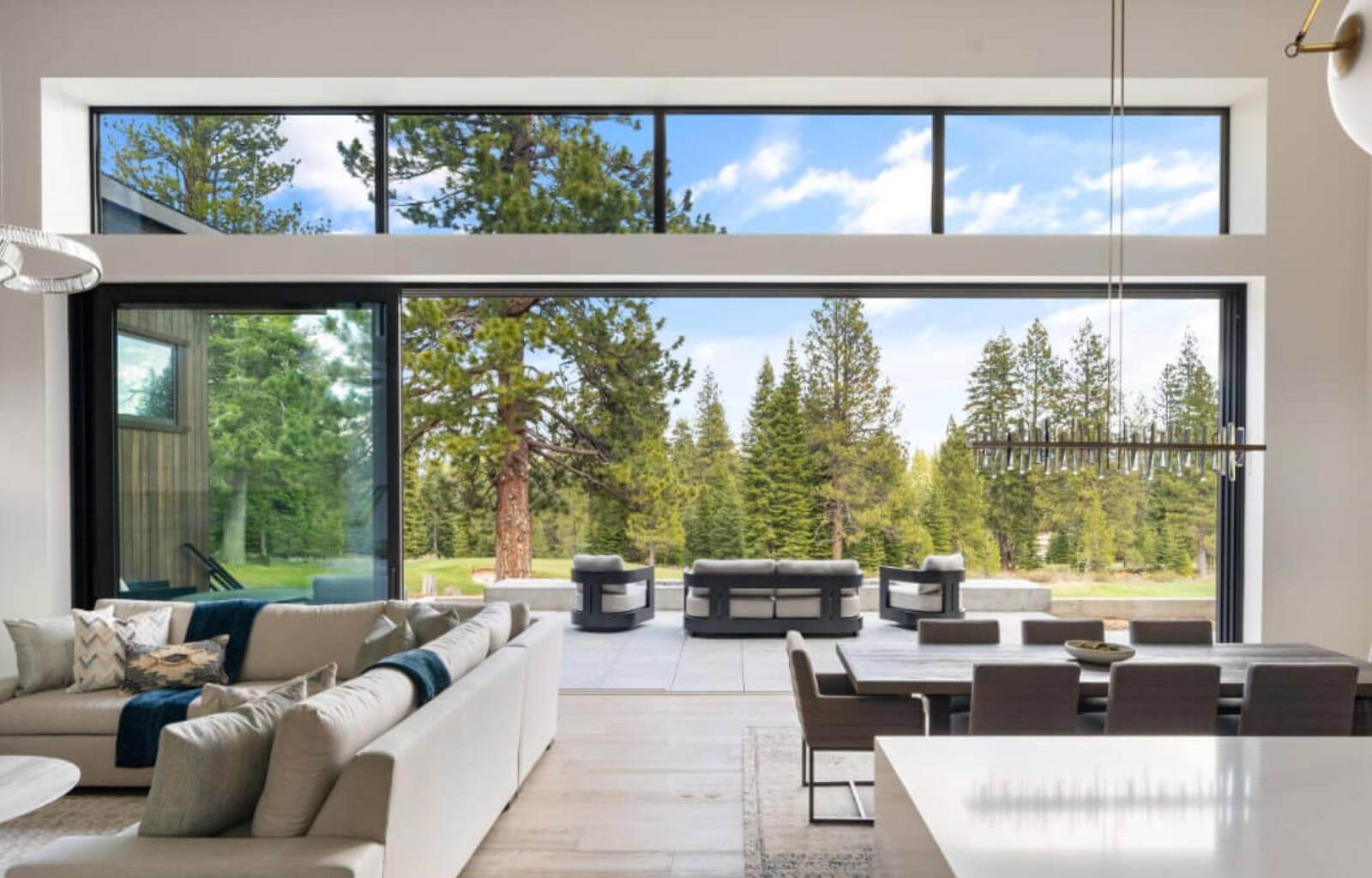

Choosing Between 2-Guide Rail and Multi-Slide Systems
A key decision when selecting 4 panel sliding patio doors is determining whether you prefer a 2-guide rail system or a multi-slide configuration.
A 2-guide rail system, which is the standard offered in most Simpas aluminum doors, features two central sliding panels and two fixed outer panels. This design is efficient, clean, and perfect for homeowners who want a wide central opening without complicating the structure.
A multi-slide system allows more panels to move, creating an even wider opening. This is especially useful in luxury homes or spaces where minimizing the boundary between indoors and outdoors is a primary design goal. Multi-slide systems may require deeper tracks and more structural reinforcement, especially when used for tall or oversized doors.
Both systems can create beautiful results, but the best choice depends on your architectural priorities. If you want an uncomplicated yet high-performance solution, the 2-guide rail design is ideal. If your vision involves the largest possible opening, a 4 panel multi slide patio door may better suit your needs.
Get Expert Advice for Your Project
Not sure if a 4 panel sliding glass door fits your space? Our specialists can help you evaluate dimensions, materials, and performance options tailored to your home.
Energy Efficiency and Performance in Large Sliding Glass Doors
Large sliding doors include large glass surfaces, and glass naturally plays a major role in thermal comfort. Modern glazing technology, however, allows these impressive installations to remain highly energy efficient.
Most high-performance 4 panel sliding glass doors feature Low-E coatings, multi-pane construction, warm-edge spacers, and inert gas-filled units. These elements help regulate solar heat gain, reduce heat loss in winter, and maintain a comfortable indoor environment year-round.
The frame material also contributes significantly to performance. At Simpas, we specialize in advanced aluminum systems sourced from Reynaers Aluminium, a global leader in thermally broken fenestration technology. These systems maintain slim sightlines without compromising insulation.
For homeowners who prioritize energy efficiency in extreme climates, steel systems with thermally broken profiles provide exceptional performance without sacrificing architectural beauty. Whether you choose aluminum or steel, selecting the right glass configuration is essential for achieving the best results.
Installation Requirements for 4 Panel Sliding Glass Doors
Installing a 4 panel sliding patio door involves more precision than smaller door systems due to the weight and size.
Typical Installation Includes:
- Measuring the structural opening
- Preparing the wall and header
- Installing the track system
- Securing panels and adjusting rollers
- Insulating around the frame
- Sealing and waterproofing
- Final alignment and testing
This is why professional installation is strongly recommended for any 4-panel configuration.
When Is a 4 Panel Sliding Glass Door the Right Choice?
A 4 panel sliding glass door is perfect if you:
- Want a wider, more dramatic opening
- Have 10+ ft of wall space
- Prefer a modern, open aesthetic
- Want more natural light
- Have a deck, garden, or patio worth showcasing
- Are designing a contemporary or luxury home
However, if your space is limited, a 2-panel sliding door may be more practical—explore the comparison in our main guide: A Guide to 2-Panel and 4-Panel (OXXO) Sliding Patio Doors for Modern Homes
Sliding Glass Door Sizes: Frequently Asked Questions
How big is a standard sliding glass door? A standard sliding glass door is 80 inches tall and 60, 72 or 96 inches wide. The most common size is 72 × 80 inches, a 6-foot, two-panel door.
How long is a sliding glass door? A two-panel sliding glass door is usually 5, 6 or 8 feet long (60, 72 or 96 inches). A four-panel door is usually 10 to 16 feet long.
What is the rough opening for a sliding glass door? The rough opening is slightly larger than the door so the frame can be leveled, shimmed and insulated. For a 4-panel door it is usually 2–4 inches wider, for example 146–148 inches for a 144-inch door. Always take the exact figure from the manufacturer’s installation drawings.
How much wall space do I need for a 4-panel sliding glass door? You need at least 10 feet of wall width for the door itself, plus room for the rough opening and the structural header. Inside, leave at least 3 feet of clear floor space in front of the door.
Can I order a sliding glass door in a custom size? Yes. Simpas makes every sliding door to order, so it can be built to your exact opening in inches, including heights over 8 feet.
What does OXXO mean on a sliding door? It describes the panel layout seen from outside: “O” is a fixed panel and “X” is a sliding panel. An OXXO door has two fixed outer panels and two sliding center panels that open from the middle.
Simpas: High-Performance Aluminum Sliding Door Systems Since 1979
Simpas has been crafting advanced fenestration systems for over four decades. As one of the top certified Reynaers Aluminium manufacturers for the U.S. market, we specialize in:
- Aluminum sliding & folding systems
- Custom steel windows and doors
- High-efficiency glazing
- Architectural-grade installation
- Solutions for passive and LEED-certified buildings
We help homeowners, architects, and builders create brighter, more energy-efficient spaces without compromising aesthetics or durability.
Upgrade Your Space With Premium Aluminum Systems
Transform your home with high-performance, modern aluminum sliding doors crafted by Simpas.
Conclusion: Planning the Space for Your 4 Panel Sliding Glass Door
To successfully install a 4 panel sliding glass door, your home needs enough wall width, structural reinforcement, and an interior layout that complements the scale of the sliding system. Once these requirements are met, the result is a bright, open, and elegant living space that enhances your home’s functionality and architectural character.
For homeowners ready to explore premium aluminum or steel systems tailored to their project, the Simpas team is always here to assist.
