Series

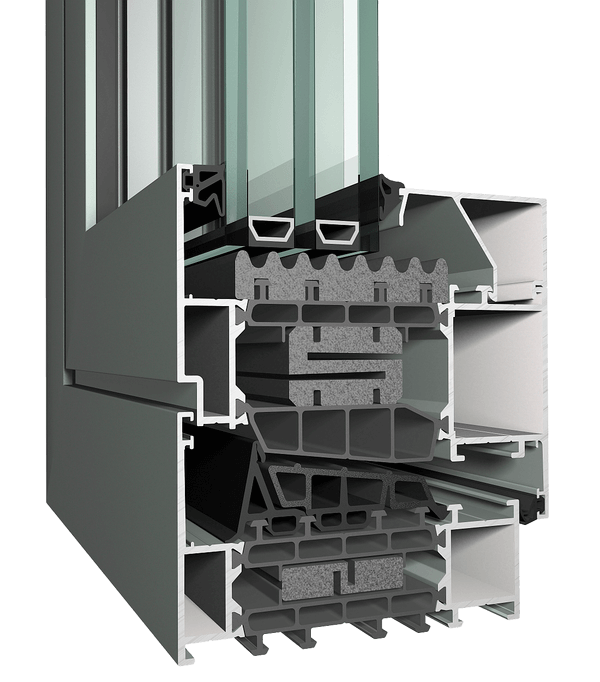

MasterLine 10
- Best value for money amongst passive systems
- Wide range of solutions
- Design variants Renaissance and Deco available
Max. height vent | 2800 mm |
Air tightness max. test pressure | 4 (600 Pa) |
Acoustic performance
| TuTi: Rw(C;Ctr) = 46(-1;-4) dB DC: Rw(C;Ctr) = 44(-2;-4) dB |
Max. Glass thickness vent | 88 mm
|
Max. width vent | 1200 mm
|
Water tightness | E900 (900 Pa)
|
Thermal insulation (Uf) | 119mm: 0,90 W/m²K |
Min. Visible width frame-vent: inward opening | 104 mm
|
Wind load resistance | C5 (2000 Pa)
|
Energy level
| Passive |
Series

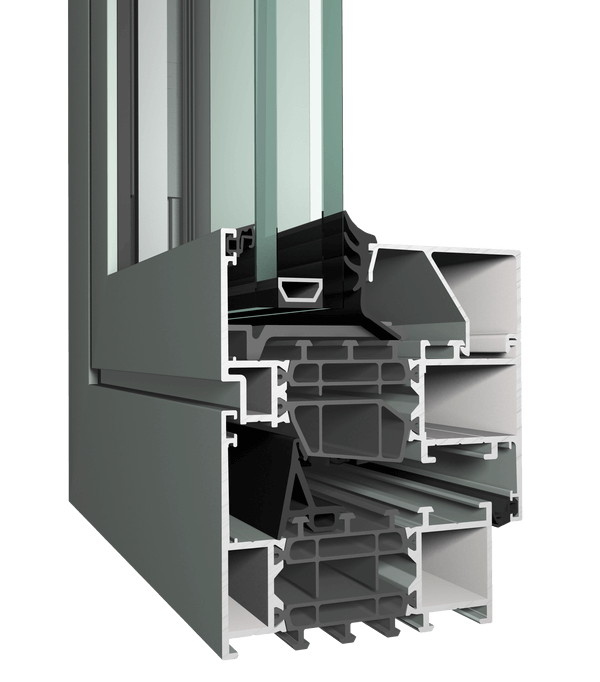

MasterLine 8
- High air, wind & water tightness performances
- Excellent thermal values
- Increased productivity
Max. height vent | 2800 mm |
Air tightness max. test pressure | 4 (600 Pa) |
Acoustic performance
| TuTi: Rw(C;Ctr) = 46(0;-3) dB DC: Rw(C;Ctr) = 44(-2;-4) dB |
Max. Glass thickness vent | 68 mm
|
Max. width vent | 1200 mm
|
Water tightness | E900 (900 Pa)
|
Thermal insulation (Uf) | 119mm: St. 1,9 / HI 1,6 / HI+1,2 W/m²K
|
Min. Visible width frame-vent: inward opening | 97 mm |
Wind load resistance | C5 (2000 Pa)
|
Energy level
| Passive |
Series

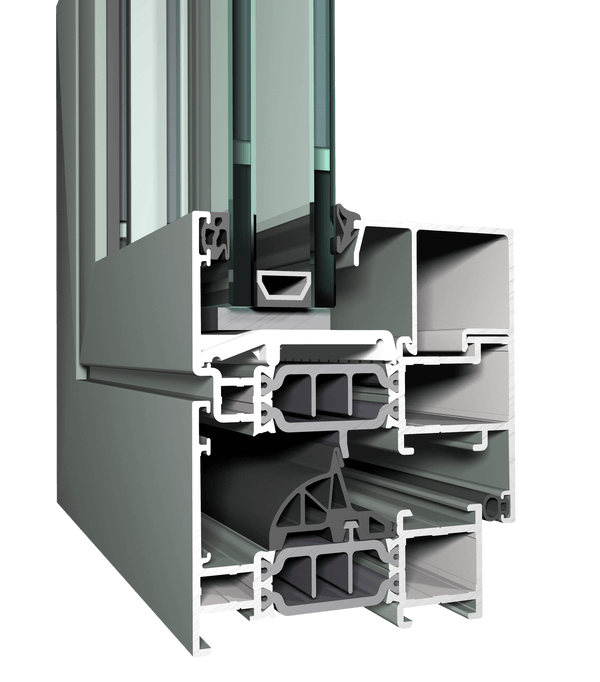

CS 77
- Well balanced price-quality-feature mix
- Minimal build-in depth for insulated system
- Reduced visible height for fixed windows and opening windows
Max. height vent | 2800 mm |
Air tightness max. test pressure | 4 (600 Pa) |
Acoustic performance
| Rw(C;Ctr) = 42(-2; -4) dB
|
Max. Glass thickness vent | 63 mm
|
Max. width vent | 1200 mm
|
Water tightness | 9A (600 Pa)
|
Thermal insulation (Uf) | 1,8 W/m²K
|
Min. Visible width frame-vent: inward opening | 89 mm |
Wind load resistance | C3 (1200 Pa)
|
Energy level
| High |
Series

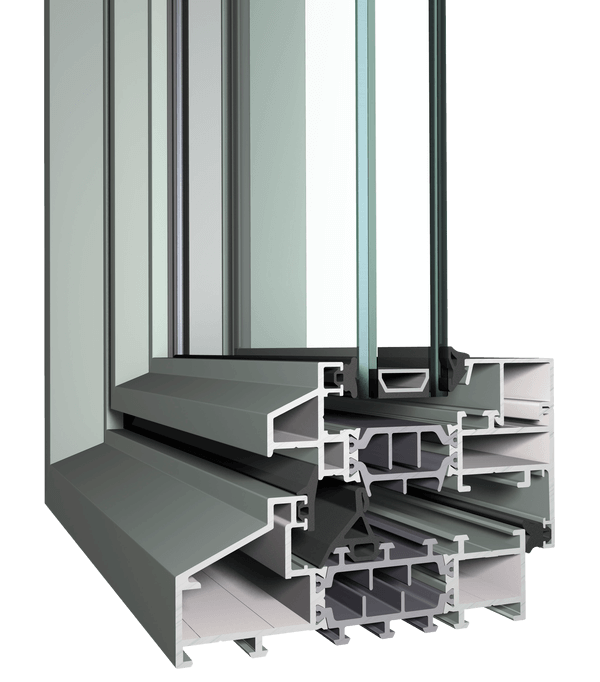

SlimLine 38
- 40mm Thermal break on frame 32mm thermal break on vent
- 10mm Frame-vent rebate
- 13.5mm glass rebate
Max. height vent | 2800 mm |
Air tightness max. test pressure | 4 (600 Pa) |
Acoustic performance
| Rw(C;Ctr) = 45(-1-5) dB |
Max. Glass thickness vent | 55 mm
|
Max. width vent | 1200 mm
|
Water tightness | 9A (600 Pa)
|
Thermal insulation (Uf) | 1,9 W/m²K
|
Min. Visible width frame-vent: inward opening | 67 mm |
Wind load resistance | C4 (1600 Pa) |
Energy level
| Super High |
